Support Guide
Blend Integration Guide
What it is, why it matters, and how to set it up in Shape
-
Numan Habib
What is Blend and why teams use it
Blend is a mortgage Point of Sale system that lets borrowers complete their loan application online in a guided, step by step experience. Borrowers can enter personal information, property details, and financial data in one place instead of sending documents back and forth over email.
When Blend is integrated with Shape CRM, your team gets a connected workflow from lead to full application.
Sales and Loan Officer benefits
- Send application invites directly from the CRM
- Less manual data entry since borrower information syncs back automatically
- Visibility into where the borrower is in the application process
- A smoother borrower experience that helps increase completion rates
Operations and Admin benefits
- Automatic record creation and updates between systems
- Reduced data errors from double entry
- Real time application and borrower updates through webhooks
- Clear alignment between the CRM record and the POS application
This integration helps your team move from “we sent them a link” to “we can actually see what they’ve completed and what’s left.”

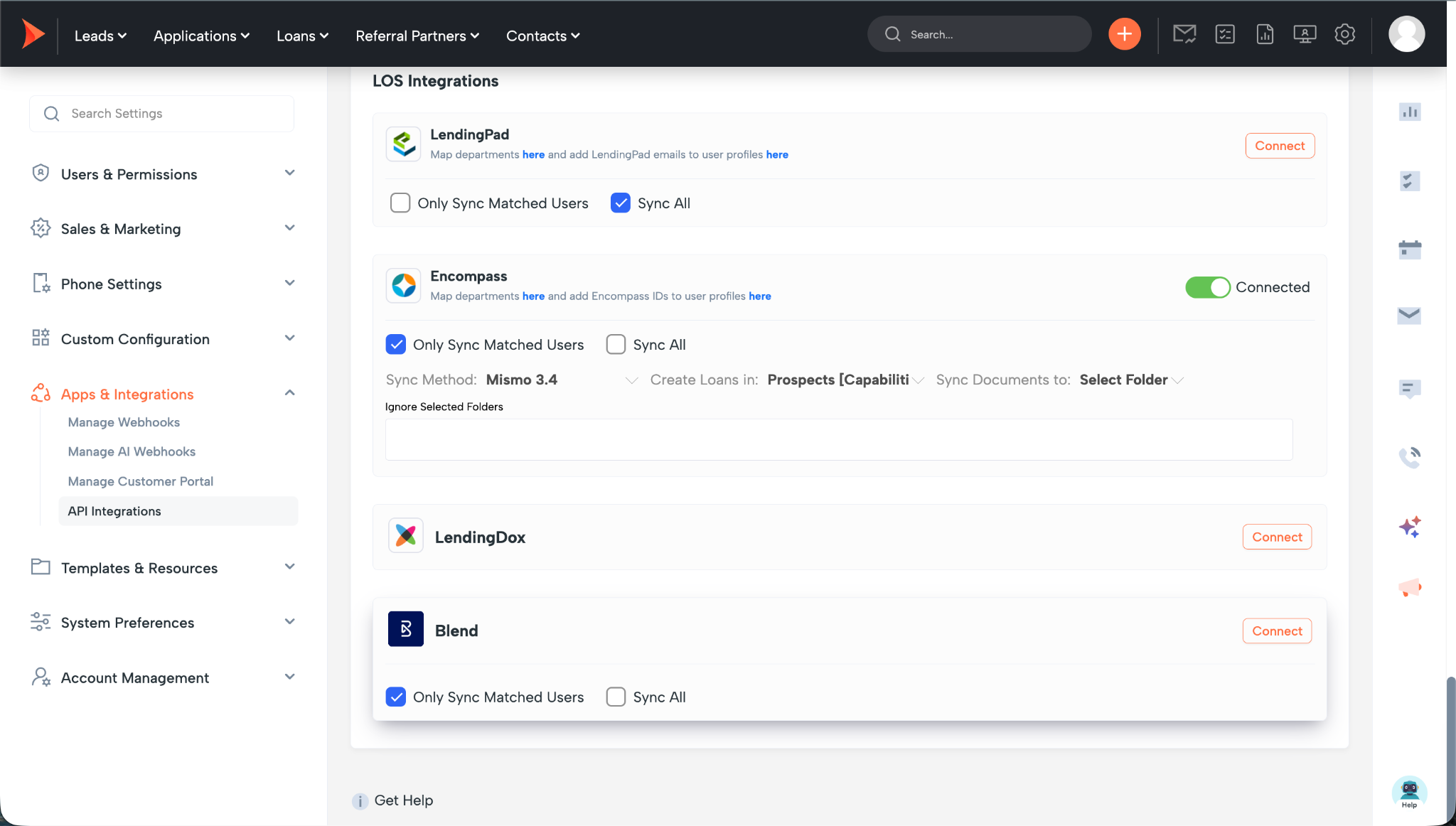

Connecting Blend to Shape
- Go to Settings → API Integrations
- Under the Blend section, click Connect
A popup will appear. Enter:
- Client ID
- Client Secret
- Tenant ID
These credentials come from your Blend environment and allow Shape to securely communicate with Blend.
Two sync modes are available:
- Only Sync Matched Users
- Sync All
How Data Syncs Back to Shape
Blend uses webhook event notifications.
We must:
- Provide Blend with our webhook endpoint
- Subscription is configured by Blend
- Webhook URL appears in the Connect popup
Each webhook event requires a follow-up GET call to retrieve full application data.
User Assignment Mapping
A Blend User ID field is added to user profiles in Shape.
This ID:
- Maps Shape users to Blend users
- Can be entered manually
- Can also be matched via the API by email when available
- A monthly touchpoint from someone they already trust
Blend roles:
- PRIMARY_ASSIGNEE = Loan Originator
- ASSIGNEE = Additional assigned users

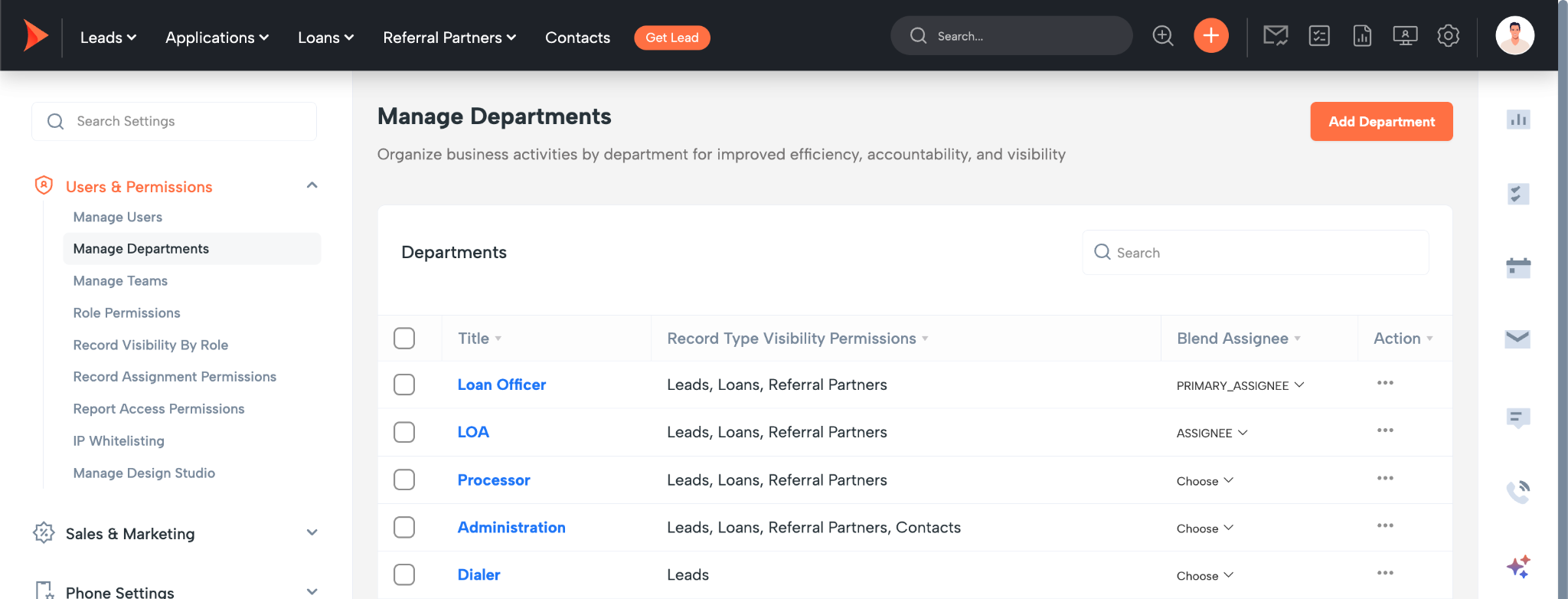

On Manage Departments, admins select which department represents the Primary Assignee (Loan Officer).
Configuring Blend Users Manually
If you need to link a specific Shape user to their Blend user:
- Open the user’s Profile
- Go to LOS Integration Details.
- Enter the Blend User ID (GUID) in the Blend User ID field
This ensures applications created from Shape are tied to the correct loan officer inside Blend.

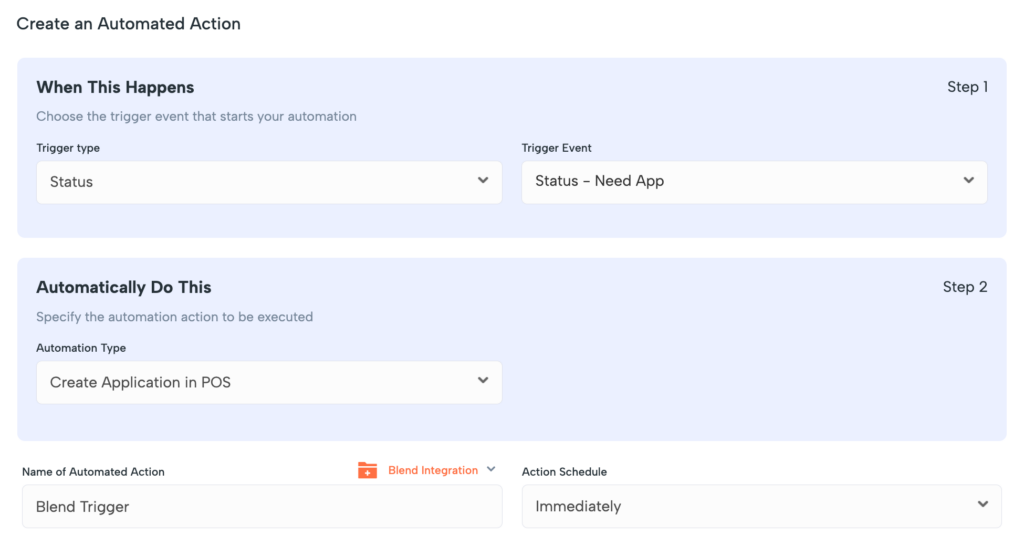

Setting Up Automation to Create Blend Applications
Automation is what turns a CRM record into a live Blend application.
- Go to Settings → Automation Actions (Triggers)
- Click Create New Automation Action
Configure:
-
Trigger Type
Choose the condition that should start the process, usually a status change. -
Trigger Event
Select the event, such as a record moving into a working status. -
Automation Type
Select Create Application POS Only. -
Action Schedule
Choose Immediately or set a delay if needed. -
Name
Use a clear name like Create Blend Application when Actively Working.
Trigger option: Create Application in POS
When triggered:
- Shape creates a Blend application
- Only borrower first and last name are required
- Shape Lead ID is stored in crmId
- Borrower email is included
- sendEmailInvite = true
- applicationSource is set to Shape
Borrower receives an email to start their Blend application.
Creating the Record That Triggers Blend
Before automation runs, the record must have minimum borrower details.
Create or update a record in Shape with:
- First Name
- Last Name
- Email Address
- Purpose
Blend User Assignment is optional. The record can be manually assigned or assigned later when Blend sends data back.
Once required fields are filled in, move the record to the status tied to your automation.

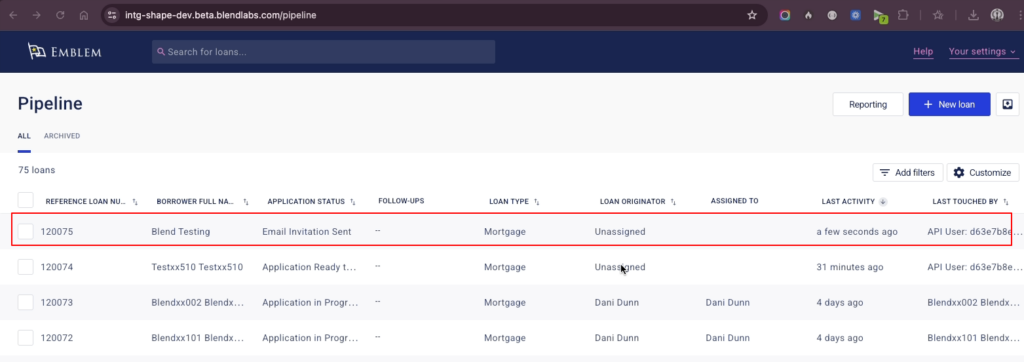

When the record hits this status, Shape will:
- Create the application in the Blend portal
- Send the borrower an email invitation link

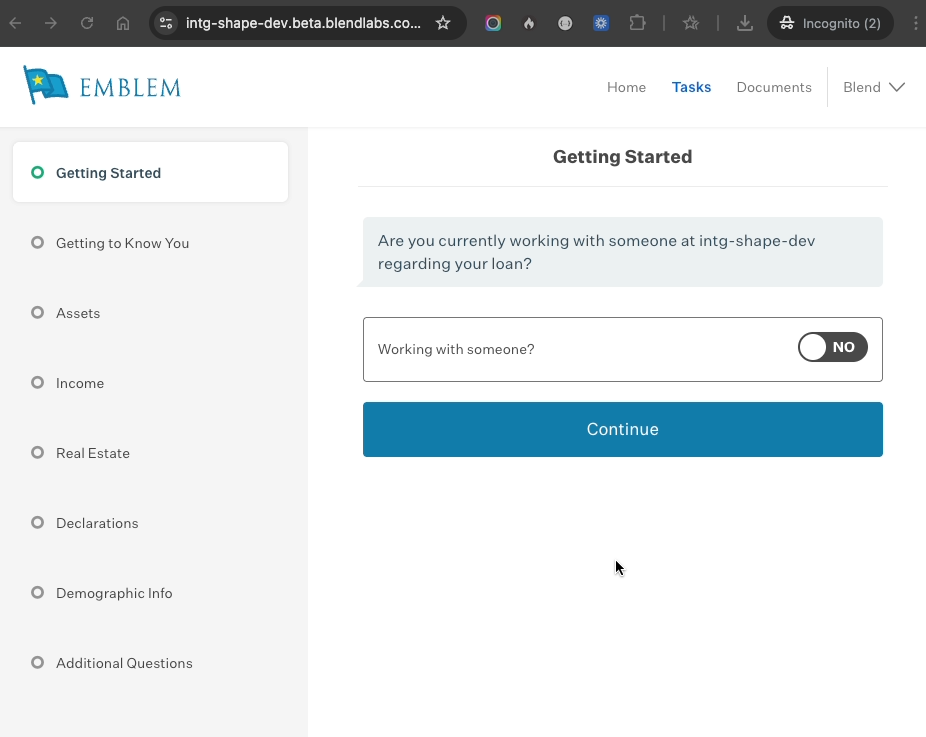

What the Borrower Experiences

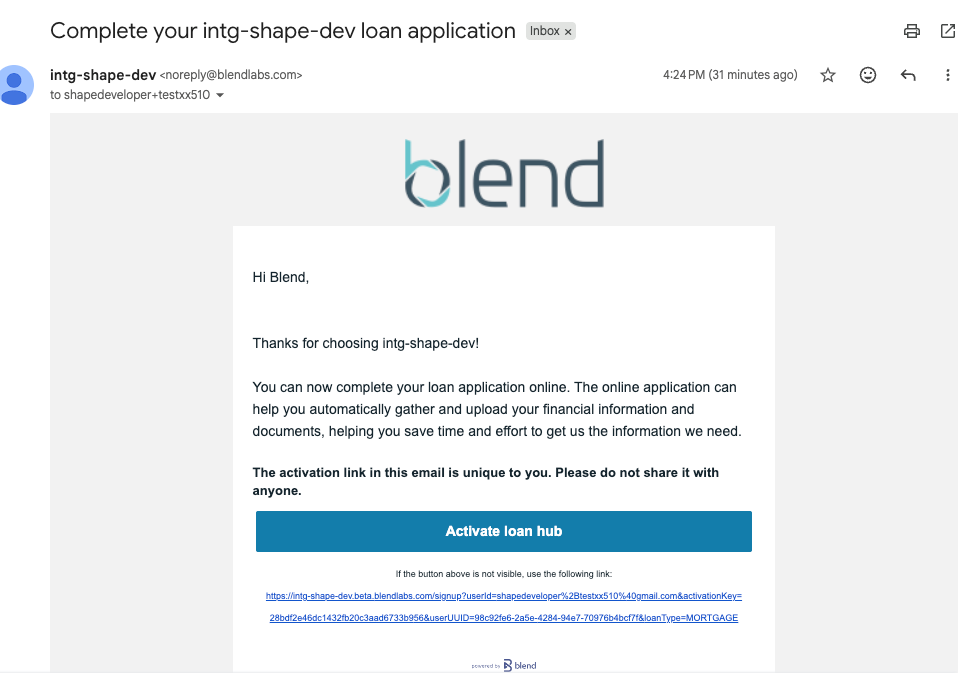

The borrower receives an email invitation. They click Activate Loan Hub, which takes them to the Blend portal.
There they:
- Complete their application
- Follow a task list
- Enter information and upload documents
Blend guides them step by step, reducing confusion and drop off.
How Data Syncs Back to Shape
As the borrower works in Blend, Shape receives webhook updates.
Here is how Shape handles that data:
- Shape checks whether the POS Application ID already exists
- If it exists, the existing record is updated
- If it does not exist, a new record is created
This keeps Shape aligned with the live application.
Blend Field Mappings
Blend Fields
Blend Fields
id
pointOfsaleId
loanPurposeType
loanPurposeType
loanAmount
LoanAmount
purchasePrice
borpurchasePrice
party.type == "BORROWER"
firstName
firstname
lastName
lastname
middleName
bormiddlename
suffixName
borsuffix
maritalStatus
bormaritalstatusdetails
veteranStatus
leadveteran
phoneNumber
phone
Mailing Address
streetAddressLine1 + line2
boMailStreetAddress
city
boMailCity
state
boMailState
zipCode
boMailZipCode
Current Address
streetAddress
boraddress
city
borcity
state
borstate
zipCode
borzip
Former Address
streetAddress
borformeraddress
city
borformercity
state
borformerstate
zipCode
borformerzip
party.type == "COBORROWER"
firstName
cbiFirstName
lastName
cbiLastName
middleName
cbiMiddleName
suffixName
cbiSuffix
maritalStatus
qkappcbimaritalstatus
phoneNumber
cbiHomePhone
Mailing
streetAddress
cbiMailStreetAddress
city
cbiMailCity
state
cbiMailState
zipCode
cbiMailZipCode
Current Address
streetAddress
cbiPresentStreetAddress
cbiPresentStreet
Address
city
cbiPresentCity
state
cbiPresentState
zipCode
cbiPresentZipCode
party.type == "REAL_ESTATE_AGENT"
firstName
relagentName
lastName
relagentLastName
relagentEmail
phoneNumber
relagentPhone
Property Fields
address->city
prCity
address->state
prState
address->countyName
prCounty
type
qkapppropertyType
typeusageType
propropertyUse
value
qkappestAppraisalVal
Income Tables
type
tblOtherIncomeInfo.type
tblOtherIncome
Info.type
yearlyIncome
tblOtherIncomeInfo.amount
tblOtherIncomeInfo.
amount
Coborrower Income
type
tblcoborrowerEmploymentInfo.type
tblcoborrowerEmploy
mentInfo.type
yearlyIncome
tblcoborrowerEmploy
mentInfo.amount.type
tblcoborrowerEmploymentInfo.amount.type
assignees
User assignment
What Information Shape Receives from Blend
When a borrower progresses through the application, Blend sends structured application data back to Shape. This gives your team visibility without needing to constantly check Blend.
Application level details
- Application ID
- Application status
- Loan purpose such as Purchase
- Loan amount
- Purchase price
- Property value
- Property type and occupancy
- Created date
- Source showing the application originated from Shape
This allows your team to see the type and size of the deal and its progress.
Borrower and Co Borrower information
For each party on the file, Shape can receive:
- Role type such as Borrower or CoBorrower
- Full name
- Email address
- Phone numbers
- Marital status
- Veteran status
- Status in the application such as Invited or In Application
This ensures the CRM record reflects everyone tied to the loan and their role.
Address history
Blend provides structured address details:
- Mailing address
- Current address
- Former addresses
- Move in dates
This reduces the need to re collect address history later.
Income information
If entered by the borrower, Shape can receive:
- Income type such as Base or Overtime
- Yearly income amounts
This gives early financial insight for the file.
Property details
Shape can receive:
- Property address
- Property type
- Occupancy type
- Estimated value
This keeps the CRM aligned with the subject property automatically.
When and How Shape Receives Data from Blend
Technical Overview
The Blend integration supports:
- Sending records from Shape to Blend
- Receiving records from Blend to Shape
- Application status updates
- Milestone updates
Event Subscriptions
All Blend integrations subscribe to Process Completed application events. These fire each time a borrower completes a major section such as:
- Getting Started
- Getting to Know You
- Assets
- Income
Some clients subscribe only to these core events, others subscribe to all available events, including:
- Party Events (loans created directly in Blend)
- Milestone events
High Level Workflow
- Shape creates an application in Blend
- Borrower enters data in Blend
- Blend sends an event notification
- Shape receives the webhook
- Shape performs a GET call to Blend to retrieve full application data
- Shape updates the CRM record
- Borrower submits the application
- Shape receives updated status events
Record Creation and Update Logic
If crmId exists
- Record updates the existing Shape lead
If crmId does not exist
- Duplicate management runs
- Record may merge or create new Lead
Source handling
- If created in Blend, source is Blend
- Record type is Leads
LOS Coordination
In some setups, Blend replaces LOS integration.
In others, it runs alongside.
To prevent duplicates:
- LOS GUID from Blend must be stored
- Must align with existing LOS logic
Summary
With Blend integrated into Shape, your team can:
- Send application invites directly from the CRM
- Track borrower progress without chasing emails
- Reduce manual entry and errors
- Keep sales, operations, and borrowers aligned in one connected workflow
The goal is a smoother borrower experience and better visibility for your team, all while keeping Shape as your central system of record.
